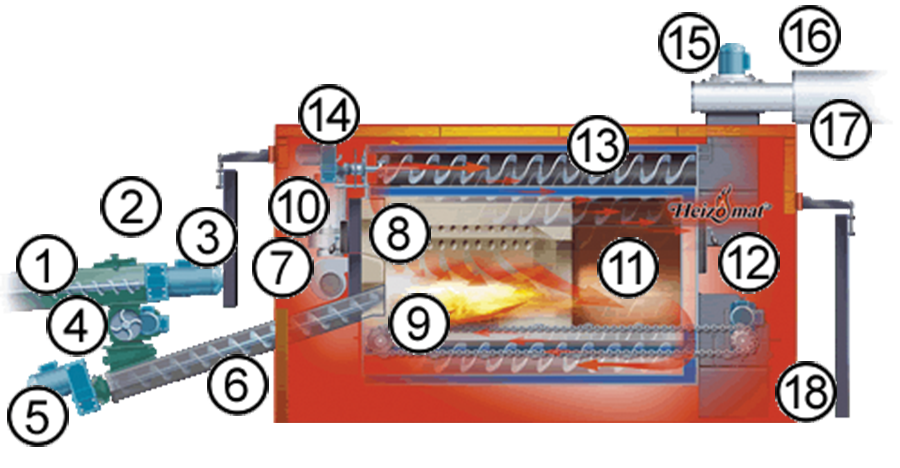

Boiler cross section

1. Discharge Channel
2. Maintenace Flap
3. Discharger system motor
4. Rotary valve
5. Feed auger motor
6. Ignition
7. Primary combustion blower
8. Secondary combustion blower
9. Combustion chamber
10. Combustion chamber door
11. Post combustion/drop out chamber
12. Post combustion chamber door
13. Heat exchanger tubes with de-ashing
14. Drive for de-ashing auger
15. Flue gas temperature sensor
16. Lambda sensor
17. Flue gas blower/connection
18. Ash cleaning system

Systems from 36-990kW

The diversity of the organic fuels knows practically no limits. To use this is the task of this boiler series.

A round cyclone combustion chamber with counter-rotational turbine air supply (rotation combustion) stands for a high degree of efficiency and complete burning of the fuel. The primary air supply is undertaken via the laterally set high temperature cast iron blocks. Everything which sluggishly degases or burns is slowly moved with chain shovels over the boiler floor to the ash discharge shaft and thereby burnt optimally.

Burns:

• Woodchips
• Pellets
• Igniscum
• Straw
• Rape straw
• Miscanthus


Use this Link to download a PDF Brochure:

RHK-AK 35

• heat output 0 - 36 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 45 Litre

RHK-AK 55

• heat output 0 - 50 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 45 Litre

RHK-AK 60

• heat output 0 - 60 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 45 Litre

RHK-AK 75

• heat output 0 - 75 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 45 Litre

RHK-AK 100

• heat output 0 - 99 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 45 to 240 Litres

RHK-AK 154 (Low)

• heat output 0 - 149 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 240 or 900 Litres

RHK-AK 155 (High)

• heat output 0 - 165 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 240 or 900 Litres

RHK-AK 204 (Low)

• heat output 0 - 200 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 240 or 900 Litres

RHK-AK 205 (High)

• heat output 0 - 200 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 240 or 900 Litres

RHK-AK 304

• heat output 0 - 300 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 240 or 900 Litres

RHK-AK 404

• heat output 0 - 400 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 900 Litres

RHK-AK 504

• heat output 0 - 500 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 900 Litres

RHK-AK 654

• heat output 0 - 600 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 900 Litres

RHK-AK 854

• heat output 0 - 800 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 900 Litres

RHK-AK 1000

• heat output 0 - 990 kW
• Suitable for chips, pellets and biomass
• Automatic cleaning
• Operations modes ignition or continuous
• De-ashing system via chain
• Ash Box 900 Litres
