Heizomat RA Range - Biomass Boilers

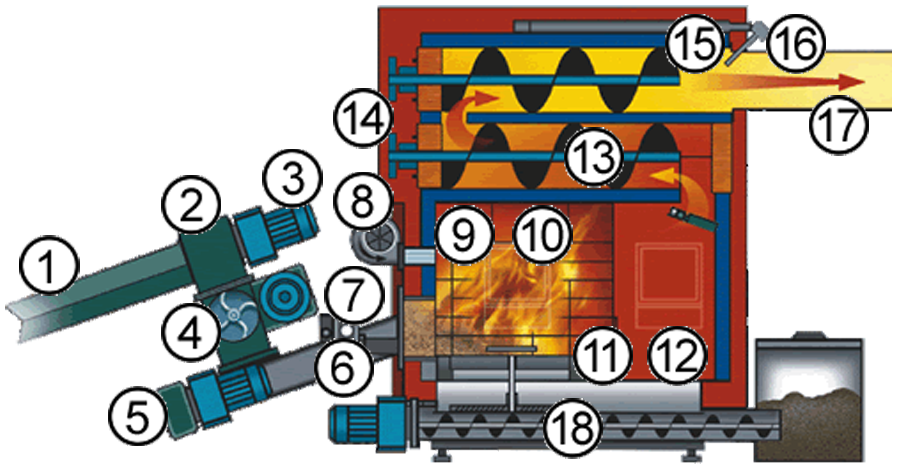

Boiler cross section

RAcrossSect

1. Discharge Channel
2. Maintenace Flap
3. Discharger system motor
4. Rotary valve
5. Feed auger motor
6. Ignition
7. Primary combustion blower
8. Secondary combustion blower
9. Combustion chamber
10. Combustion chamber door
11. Post combustion/drop out chamber
12. Post combustion chamber door
13. Heat exchanger tubes with de-ashing
14. Drive for de-ashing auger
15. Flue gas temperature sensor
16. Lambda sensor
17. Flue gas blower/connection
18. Ash cleaning system

Systems from 15-200kW

The very special features of this boiler series are that the high temperature combustion chamber is integrated into the boiler body and thus the radiant heat of the fireclay bricks is diverted to the boiler water.

The moduating boiler has combustion chamber cleaning with an ash removal paddle and automatic cleaning of the heat exchanger tubes with de-ashing auger.
The possible operating modus is continuous or ignition with glow bar automatic ignition.

Burns:

  • Woodchips
  • Pellets
  • Igniscum
  • Sawdust
  • Wood shavings
  • Briquettes


Use this Link to download a PDF Brochure:

PDFIcon

HSK-RA 15

HSKRA1501copy

  • heat output 0 - 15 kW
  • Suitable for chips, pellets and biomass
  • Automatic cleaning
  • Operations modes ignition or continuous

HSK-RA 30

HSKRA3001copy

  • heat output 0 - 33 kW
  • Suitable for chips, pellets and biomass
  • Automatic cleaning
  • Operations modes ignition or continuous

HSK-RA 50

HSKRA5003copy

  • heat output 0 - 44.5 kW
  • Suitable for chips, pellets and biomass
  • Automatic cleaning
  • Operations modes ignition or continuous

HSK-RA 60

HSKRA6001copy

  • heat output 0 - 60 kW
  • Suitable for chips, pellets and biomass
  • Automatic cleaning
  • Operations modes ignition or continuous

HSK-RA 75

HSKRA7501copy

  • heat output 0 - 75 kW
  • Suitable for chips, pellets and biomass
  • Automatic cleaning
  • Operations modes ignition or continuous

HSK-RA 100

HSKRA10001copy

  • heat output 0 - 99 kW
  • Suitable for chips, pellets and biomass
  • Automatic cleaning
  • Operations modes ignition or continuous

HSK-RA 150

HSKRA15001copy

  • heat output 0 - 150 kW
  • Suitable for chips, pellets and biomass
  • Automatic cleaning
  • Operations modes ignition or continuous

HSK-RA 200

HSKRA20001copy

  • heat output 0 - 200 kW
  • Suitable for chips, pellets and biomass
  • Automatic cleaning
  • Operations modes ignition or continuous

Here to help . . .

If you would like any more information on any of our products or can't find what you need here - please contact us by email or telephone 07706 845 097
